For commercial vessels travelling near coastlines or leisure yachts and sailboats

Extend your connectivity

Up to 20 miles off shore

Εxtend the maritime connectivity of your commercial vessels

The Evo2 Dual 4G Router is MarPoint’s latest innovation for high speed internet at sea with extensive coverage up to 20 miles offshore.

Facts

  • Deep sea commercial vessels spend on average more than 50% of their time in port or coastal waters. These areas are potentially within 4G/LTE coverage.
  • Proportion of data generated on board are never sent ashore for further analysis.
  • Not all of these data are critical to be submitted via satellite but could wait until the vessel approaches coastlines or a port where they can be transmitted via the higher bandwidth and cost effectiveness of 4G/LTE.
  • Lack of bandwidth and cost are among the biggest constraints when using satellite maritime connectivity
  • Due to the changing maritime industry conditions, a series of inspections on board vessels take place remotely via tools such as video conferencing, where satellite bandwidth capabilities do not allow good quality and in many cases do not allow such remote inspection methods at all.

Solution

  • 4G/LTE communications technology can be used as complementary to satellite connectivity (near shore connection) so as to deliver added value benefits to ship managers, ship operators and the vessel’s crew.
  • The Evo2 Dual 4G Router by MarPoint is the latest innovation for high speed internet at sea with extensive coverage up to 20 miles offshore.
  • A reliable and fast 4G solution with a set of fair use policies and traffic prioritizations. Ideally recommended for commercial vessels especially on remote locations where high speed internet is required.
  • Extremely suitable when travelling routes are near to coastlines. Furthermore, it can be used as a reliable data communication backup solution when satellite communication is not available.
  • The Evo2 4G Router allows you to control multiple WAN interfaces (i.e VSAT, FBB etc), enabling you to achieve extended connectivity and increased coverage.

The yaght HIGH SPEED Internet

Up to 20 miles off shore

Suitable for Leisure Yachts and Sailboats travelling near coastlines

The Evo2 Dual 4G Router is MarPoint’s latest innovation for high speed internet at sea with extensive coverage up to 20 miles offshore.

It is recommended for use in any type of yacht or fishing vessel especially on remote locations where high speed internet is required. Furthermore, it can be used as a reliable data communication backup solution for commercial vessels when satellite communication is not available.

Router has two external SIM slots, thus offering the ability to insert two SIM cards from different or same provider as well as the ability to control other WAN interfaces (i.e VSAT FBB etc) and get double bandwidth and extended connectivity/coverage. Ability to manage any WAN interface or satellite provider (VSAT, FBB) is of course an option.

DUAL SIM CARD

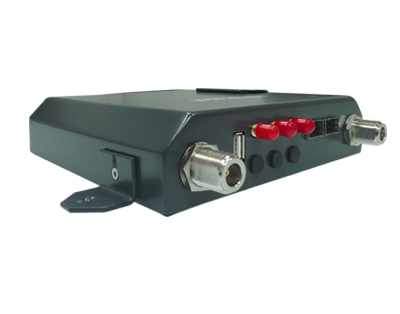

3G/4G GSM ANTENNA

WiFi / BYOD

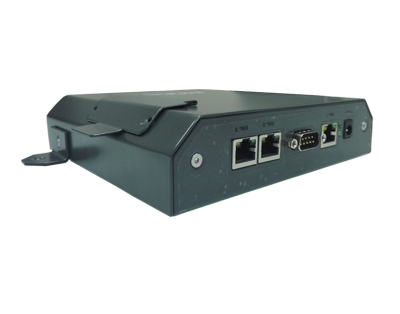

ETHERNET PORTS

Typical vessel network

marpoint evo2 dual LTE vessel diagram

Create Crew internet hotspot cards, allowing the office to share the FBB or VSAT monthly data package allowance of each vessel with the crew members

Our Netmeter software allows counting the data used per vessel and per getaway.

Graphic User Interface (GUI) that can be installed on any computer running Windows

Feature List

Dual 3G/4G

Dual 3G/4G capability with auto failover.

Connection with Outdoor 3G/4G

Connection with Outdoor 3G/4G.

High coverage

20 miles off shore 3G/4G coverage.

Hybrid QoS

Automatic bandwith stabilization between CIR and MIR based on network quality features.

Windows-based User Interface

Windows application for manual override (i.e. block crew network, switch WAN interface with a click of a button).

BYOD

Bring your own device. Seafarers can access data services using their own smartphone, tablet or laptop.

Technical information

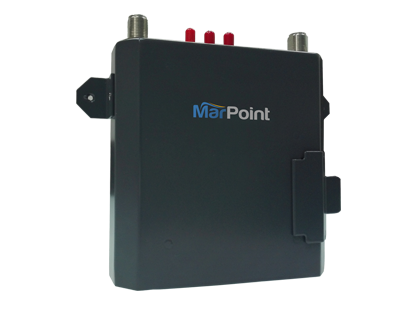

Dual 4G Mini Marine Dual Router 4G

  • PN – MRPT-HSI2S

Available accessories

  • Windows application for manual override
  • Web-based bandwidth consumption tool
  • Web Filtering tool
  • Connect Long Range Wi-Fi hotspots
  • Connect External Marine Type 3G/4G Antennas

Technical specification

  • 88 – 264 Volt AC
  • 47 – 63 Hz
  • 1.3A typ./115 VAC
  • 0.8A typ./230 VAC

Hardware dimensions

FleetBroadband (FBB), VSAT, 3G/4G, Firewall, Wi-Fi, Crew Hotspot, Crew Calling and Network Solution.

GlobalSim Data only Roaming Card offers coverage in 105+ countries and unlimited Data packages
